Bench Drill
TC-BD 630/1
Item no:4520597EAN: 4006825668476
einhell-classic-bench-drill-4520597-productimage-001
einhell-classic-bench-drill-4520597-example_usage-001
einhell-classic-bench-drill-4520597-detail_image-001
einhell-classic-bench-drill-4520597-detail_image-002
einhell-classic-bench-drill-4520597-detail_image-003
einhell-classic-bench-drill-4520597-detail_image-004
einhell-classic-bench-drill-4520597-detail_image-005
einhell-classic-bench-drill-4520597-productimage-001
einhell-classic-bench-drill-4520597-example_usage-001
einhell-classic-bench-drill-4520597-detail_image-001
einhell-classic-bench-drill-4520597-detail_image-002
einhell-classic-bench-drill-4520597-detail_image-003
einhell-classic-bench-drill-4520597-detail_image-004
einhell-classic-bench-drill-4520597-detail_image-005
Bench Drill

TC-BD 630/1

Item no: 4520597 EAN: 4006825668476
  • Powerful, smooth-running and maintenance-free induction motor
  • 12 adjustable speeds for material-appropriate working
  • Robust sprocket chuck 1.5–16 mm for common drill sizes
  • Flexibility thanks to MK2 holder for Morse conical drill bits
  • Adjustable depth stop for precise holes also in series
  • Height-adjustable, tiltable and rotatable drilling table
  • Extra-large projection for machining large workpieces
  • Ball-bearing drill spindle for long-lasting, smooth-running operation
  • Three-arm rotating handle for fine force dosing
  • Sturdy steel base for a secure stand of the machine
  • Foldable chip protection for safety and good visibility
  • On/off switch with zero voltage tripping as safety plus
See more information
einhell-classic-bench-drill-4520597-productimage-001
Article description

The Einhell bench drill TC-BD 630/1 is a precision ool for ambitious DIY enthusiasts. Due to the extra-large projection of 126 mm, large workpieces made of wood or metal can be reliably provided with pinpoint holes. With 630W power and 12-step speed adjustment from 200 to 2,450 rpm, material-appropriate and precise drilling is possible. The bench drill can thus be used at a very low as well as at a very high speed and is excellently suited both for hard materials such as metal, but also for soft material such as wood. Precise drill holes up to a maximum drilling depth of 60 mm are possible thanks to the adjustable depth stop. The bench drill is equipped with a robust sprocket chuck and an MK2 socket, which allows the use of Morse taper drills and common drills with a diameter of 1.5 mm to 16 mm. The ball-bearing boring spindle ensures long-lasting and easy operation. The bench drill can be variably adjusted by the continuously variable height adjustment of the boring table. In addition, the drilling table can be rotated up to 90° and tilted up to 45°. The rubberised, three-armed rotating handle proves itself due to the favourable lever effect at exact contact pressure without the expenditure of force. The foldable chip protection ensures safety in use. The on/off switch with a zero voltage release prevents the machine from unintentionally restarting after a power failure.

Technical details

Drilling depth60 mm
Max. drill bit diameter16 mm
Max. speed2400 min^-1
Min. drill bit diameter1.5 mm
Min. speed250 min^-1
Power S2630 W
Product weight19.4 Kg

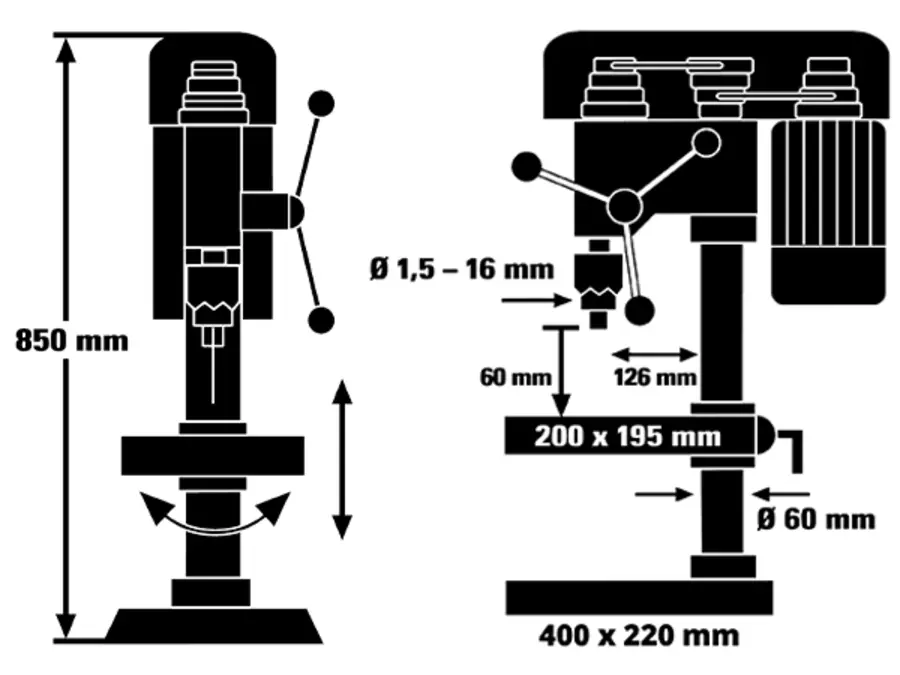

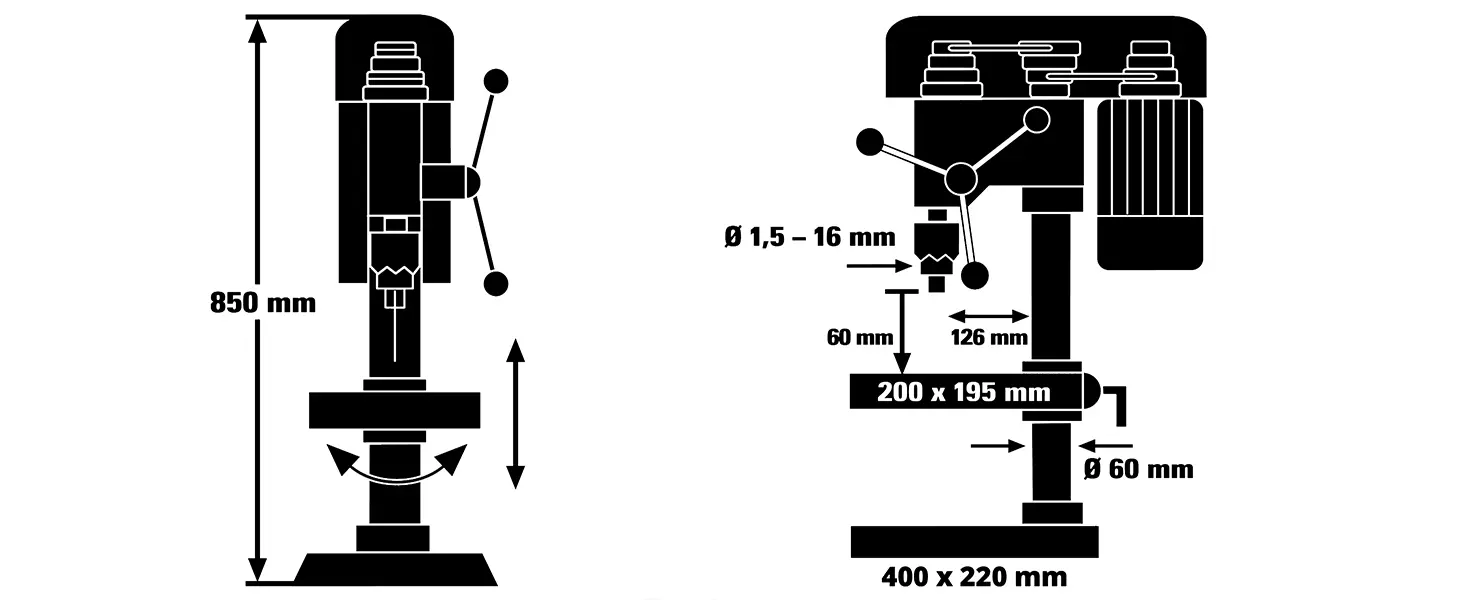

Projection126 mm
Quick-release drill chuckfalse
Rotating range (drill table)90 °
Adjustable-speed

Adjustable speed

With the help of the 12-stage speed regulation, the speed between 200 and 2,450 rpm can be adjusted to the respective material and application without tools, precisely and according to the material.

Flexible-drilling-table

Flexible drilling table

For maximum flexibility, the drilling table is infinitely adjustable in height, rotatable up to 90° and tiltable up to 45°. The robust steel base ensures the necessary stability of the bench drill.

Precise drill holesPowerful bench drill for DIY enthusiasts

The powerful bench drill TC-BD 630/1 is the perfect equipment for ambitious DIY enthusiasts. With 630W power and speeds between 200 and 2,450 rpm, precise drilling couldn't be simpler.

full_width_image
full_width_image
Exact-drilling-depth-up-to-60mm

Exact drilling depth up to 60 mm

With the adjustable, robust depth stop, the precisely desired drilling depth can be defined up to a maximum of 60 mm. In this way, precise and fast drilling is also possible in series.

Suitable-for-all-common-drills

Suitable for all common drills

Thanks to the MK2 adapter and the robust sprocket chuck, all common Morse taper drills and drills with a drill diameter between 1.5 and 16 mm can be inserted into the bench drill.
