PROFESSIONAL Cordless Impact Drill

TP-CDD 18/701-C Li-i +70 (3Ah)

Item no: 4514341 EAN: 4006825689556

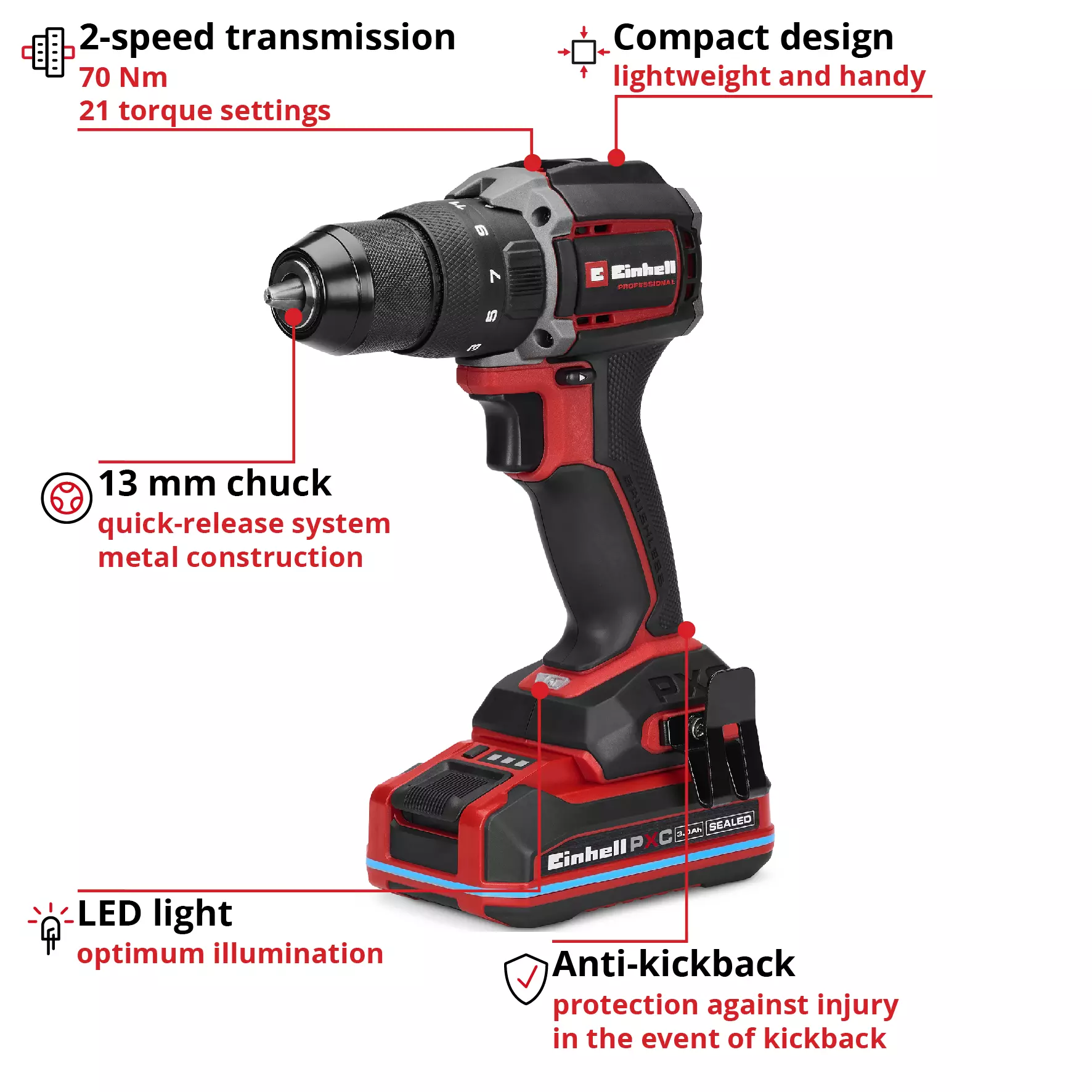

  • A member of the Power X‑Change family, 1 x 18 V battery required
  • Brushless motor – more power and longer running time
  • Brushless – 10-year warranty on motor after registration
  • Compact and powerful
  • High-quality 13-mm quick-release chuck
  • Anti-kickback function prevents injuries in the event of a blockage
  • 2-speed gearbox for powerful screwing and drilling
  • Impact drilling function for universal working
  • Quick stop for fast and easy changes of tool
  • Safety clutch prevents screws from being overtightened
  • Belt clip to keep within quick reach between uses
  • Ergonomic design with soft grip for comfortable working
  • LED light to illuminate the working area
  • Incl. E-Case with 70 pcs. bit/drill accessory set
  • Incl. 1 x 3.0 Ah SEALED PXC battery and 3 A charger
See more information
Show less information
Total 199.00199 CHF*
Attention!

Currently, no orders can be placed in the online shop.

Please try again later or check your firewall/ad-blocker settings.

PROFESSIONAL Cordless Impact Drill
TP-CDD 18/701-C Li-i +70 (3Ah)
Item no: 4514341 EAN: 4006825689556
  • A member of the Power X‑Change family, 1 x 18 V battery required
  • Brushless motor – more power and longer running time
  • Brushless – 10-year warranty on motor after registration
  • Compact and powerful
  • High-quality 13-mm quick-release chuck
  • Anti-kickback function prevents injuries in the event of a blockage
  • 2-speed gearbox for powerful screwing and drilling
  • Impact drilling function for universal working
  • Quick stop for fast and easy changes of tool
  • Safety clutch prevents screws from being overtightened
  • Belt clip to keep within quick reach between uses
  • Ergonomic design with soft grip for comfortable working
  • LED light to illuminate the working area
  • Incl. E-Case with 70 pcs. bit/drill accessory set
  • Incl. 1 x 3.0 Ah SEALED PXC battery and 3 A charger
See more information
Show less information
einhell-professional-cordless-impact-drill-4514341-productimage-001
Article description

The Einhell Professional cordless impact drill TP-CDD 18/701-C Li-i +70 (3Ah) is part of the high-performance Power X-Change family – batteries, devices and chargers can be combined flexibly. The tool is powered by an Einhell Brushless motor. This brushless motor provides more power and longer runtimes than a conventional carbon brush motor. Once you register online, there is a 10-year warranty on the Brushless motor. Compact, lightweight and yet powerful: Compared to similarly powerful tools, the Einhell Professional cordless impact drill has a more compact design, making it particularly flexible and easy to handle. With its robust 2-speed gearbox, a hard torque of 70 Nm, 21 torque levels, a drilling mode and an impact drilling mode, it is ideally equipped for all screwing, drilling and impact drilling work. The integrated impact drilling function also enables drilling into masonry. With the 13-mm quick-release chuck made of metal, the tool can be changed quickly and easily. Safety is ensured by the anti-kickback function, which prevents injuries in the event of sudden blockage. The safety clutch also protects against overtightening screws. Thanks to its ergonomic design with soft grip and practical belt clip, the device sits comfortably in the hand and can also be easily stored. The built-in LED light ensures perfect illumination of the working area. The scope of supply includes a handy E-Case, which is equipped with an assorted 70-piece bit and drill set (5 x masonry drill bits, 5 x wood drill bits, 10 x HSS drill bits, 16 x 25 mm bits, 16 x 50 mm bits, 8 x 75 mm bits, 5 x magnetic socket attachments, 3 x socket adaptors, 1 x quick-change bit holder, 1 x magnetic bit holder). A 3.0 Ah SEALED PXC battery and a 3 A charger are also included.

See more information
Show less information

Technical details

Max. capacity drill chuck
13 mm
Min. capacity drill chuck
1.5 mm
Motor type
Brushless motor
Motor voltage
18 V
Number of batteries included in delivery
1 pcs
Number of bit set pieces
40 pcs
Number of chargers included in delivery
1 pcs
Number of drill bits concrete included in delivery
5 pcs
Number of drill bits metal included in delivery
10 pcs
Number of drilling settings
1
Number of drills/bits included in delivery
20 pcs
Number of hammer drill settings
1
Number of torque settings
21
Number of transmission gears
2
Product weight
1.07 Kg
Stroke rate gear 1
6750 min^-1
Stroke rate gear 2
30000 min^-1
Torque (hard)
70 Nm

Ready for anything!

A huge range of accessories is included in the scope of supply

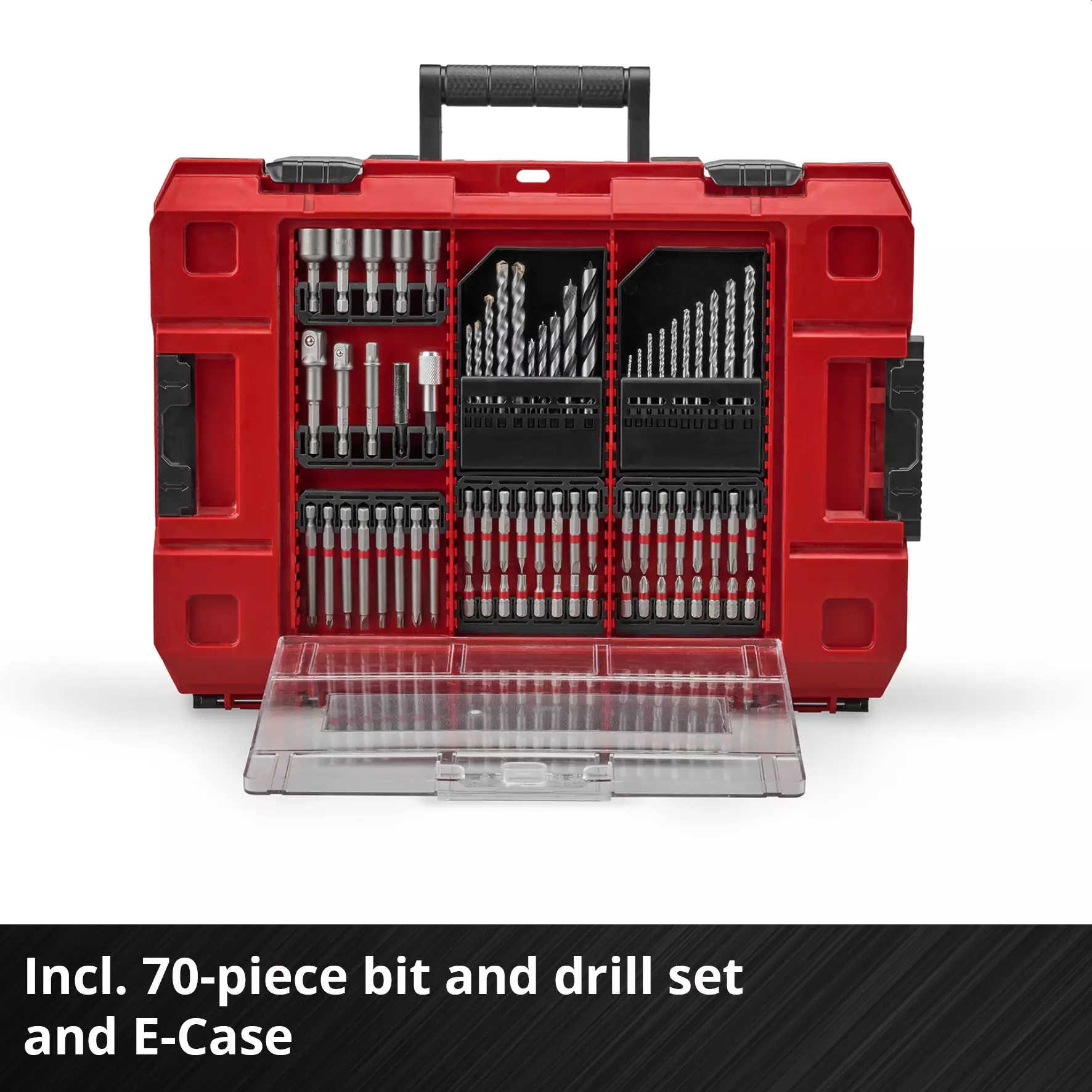

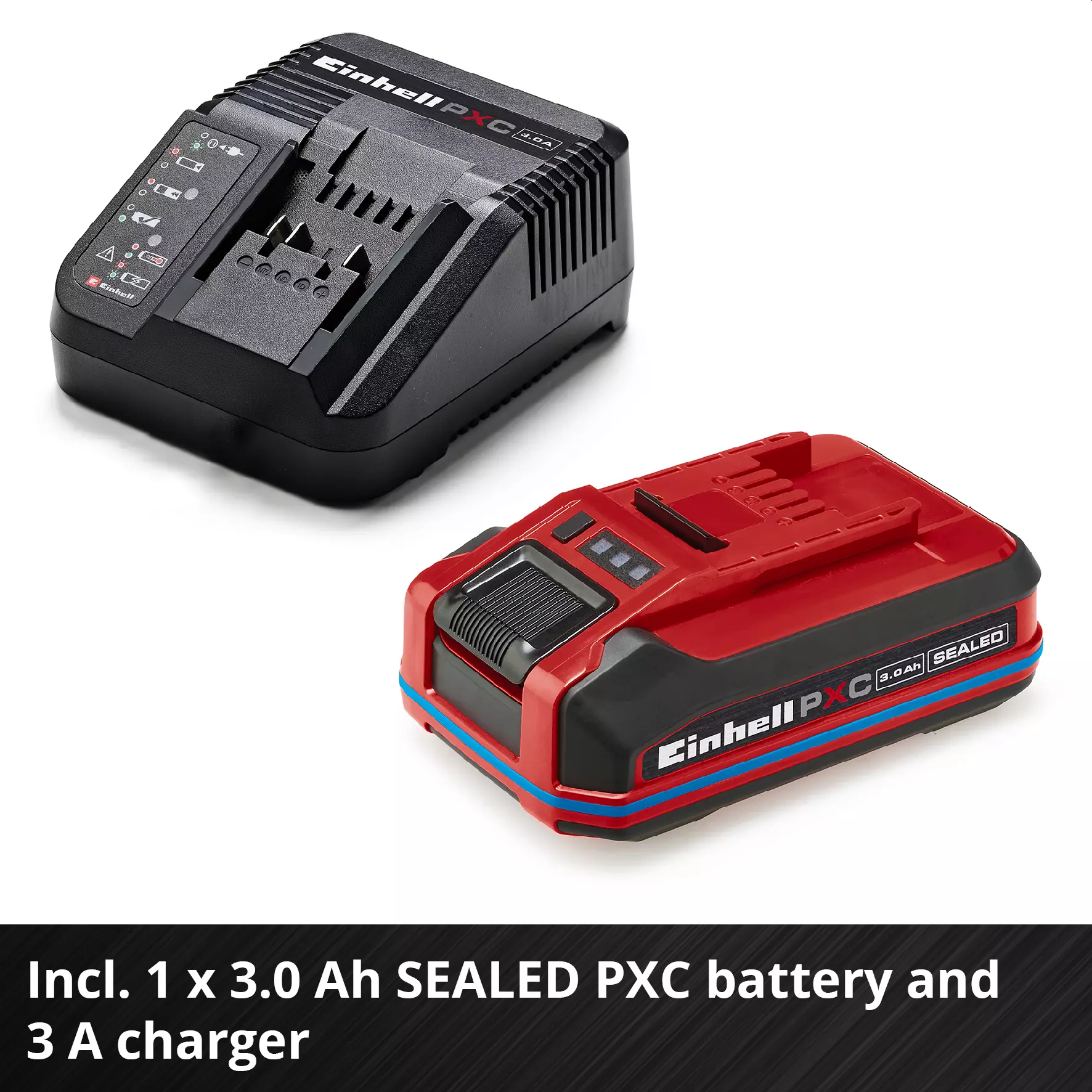

To help you get started straight away, a 3.0 Ah SEALED PXC battery and 3 A charger are also included. Also included is an Einhell E-Case with a 70-piece bit/drill set. The accessory set consists of 5 x masonry drill bits, 5 x wood drill bits, 10 x HSS drill bits, 16 x 25 mm bits, 16 x 50 mm bits, 8 x 75 mm bits, 5 x magnetic socket attachment, 3 x socket adaptors, 1 x quick-change bit holder, 1 x magnetic bit holder.

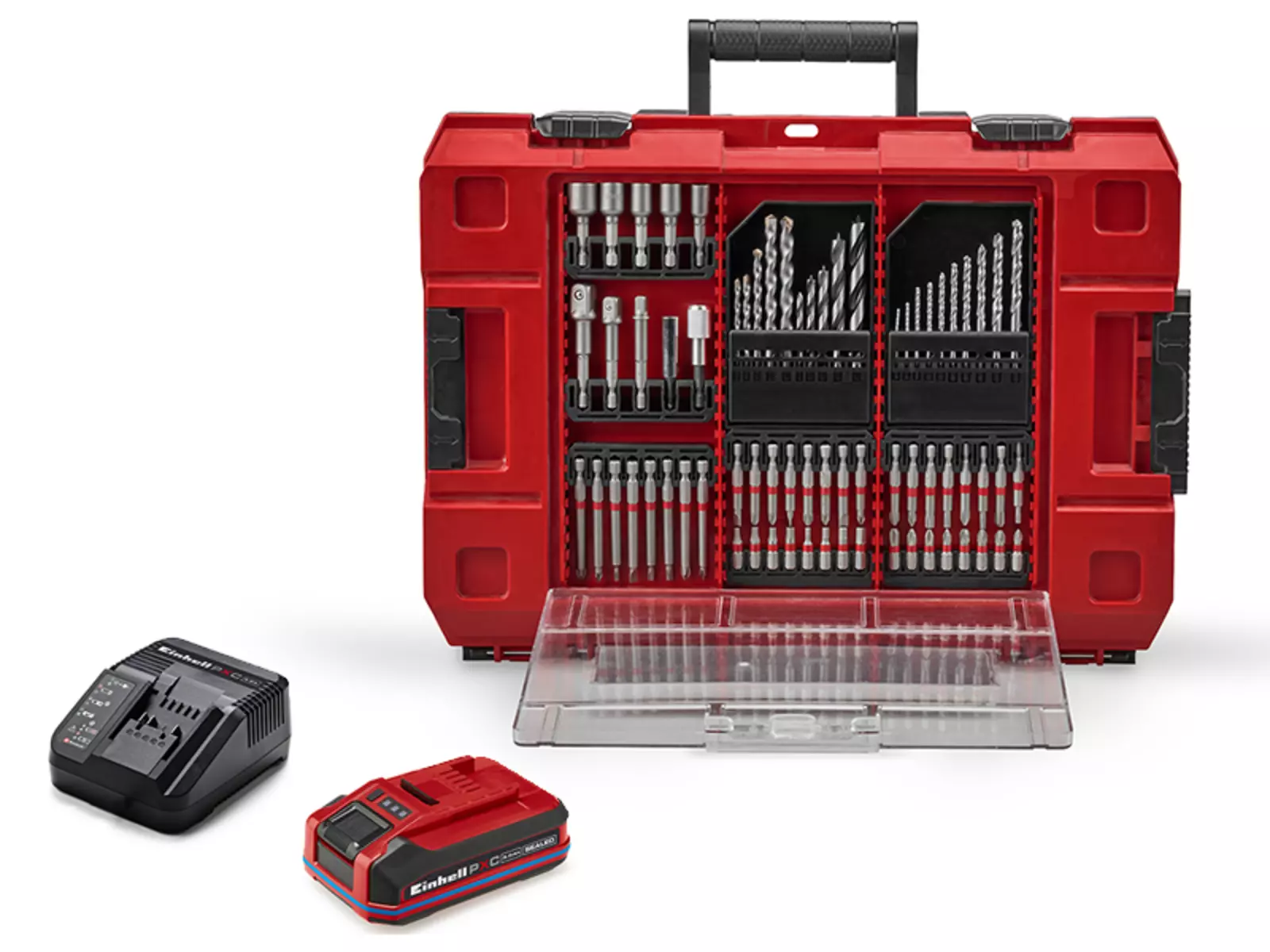

The Einhell TP-CDD 18/70 1-C Li-i +70 (3Ah) cordless impact drill/driver in a set with 70 accessories, Power X-Change battery and charger in front of an open red tool case with drill and screwdriver bits.

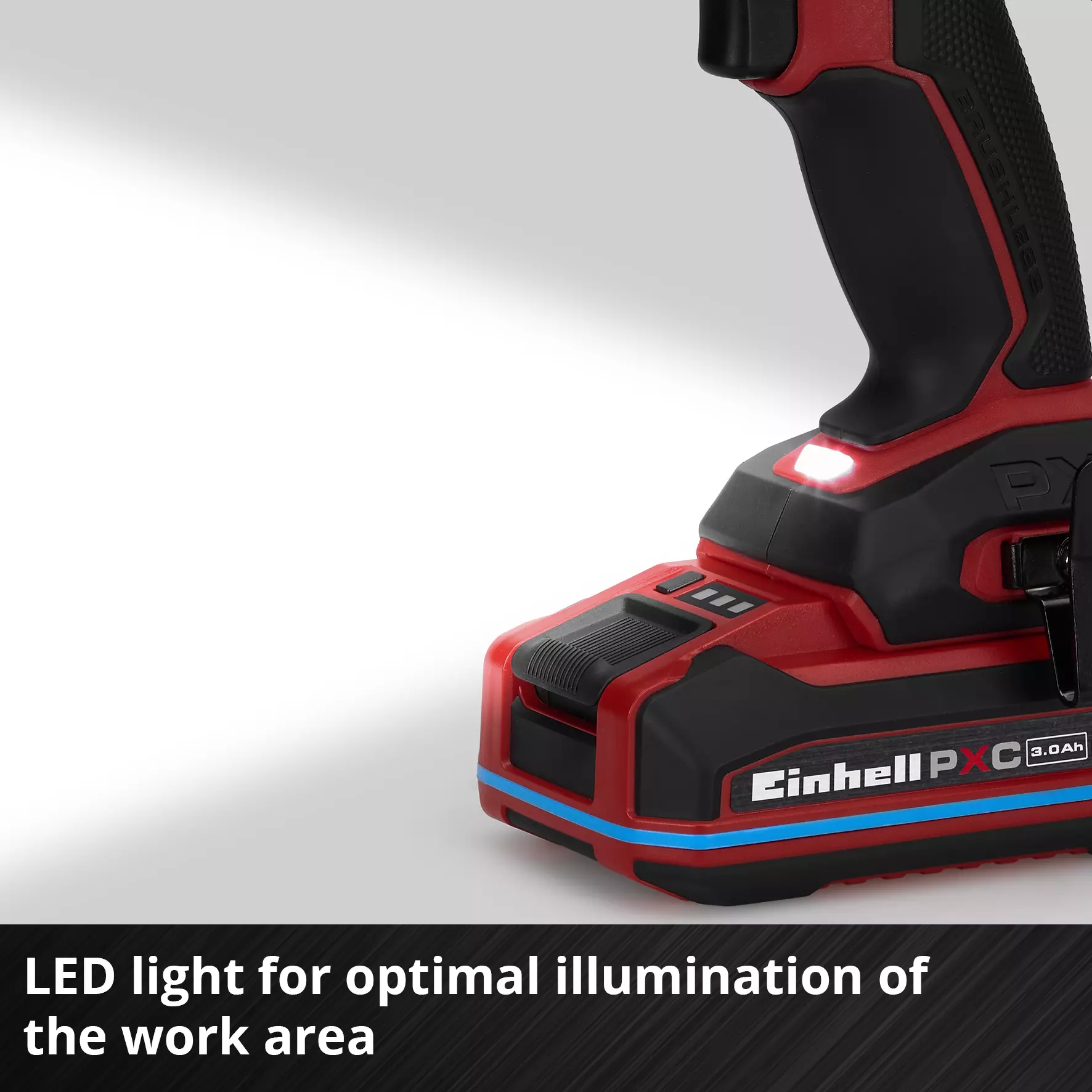

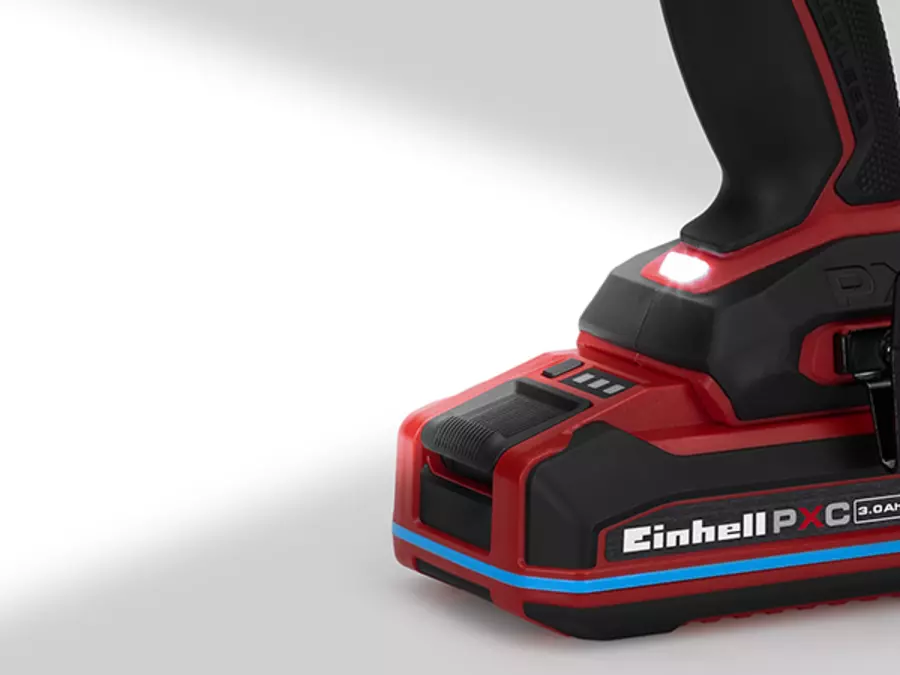

The Einhell TP-CDD 18/70 1-C Li-i +70 (3Ah) cordless impact drill/driver with activated LED light illuminates the work area.

Integrated LED light

The LED light integrated into the cordless impact drill ensures good visibility and ample illumination of the work area.

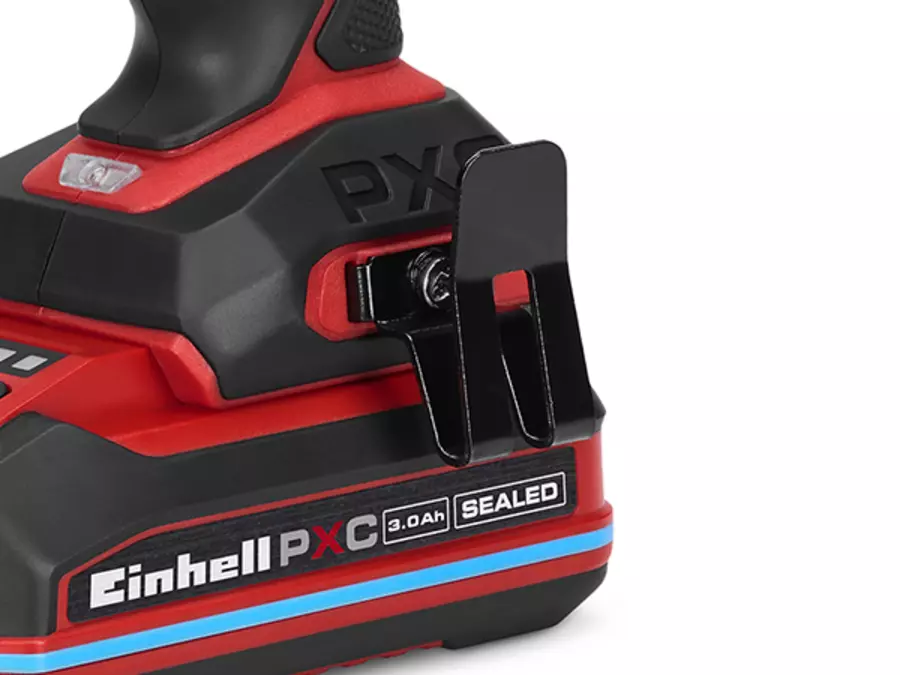

Close-up of the belt clip on the Einhell TP-CDD 18/70 1-C Li-i +70 (3Ah) cordless hammer drill/driver on the side of the tool.

In easy reach

Thanks to the belt clip attached to the tool, the cordless impact drill can be hung safely between uses.

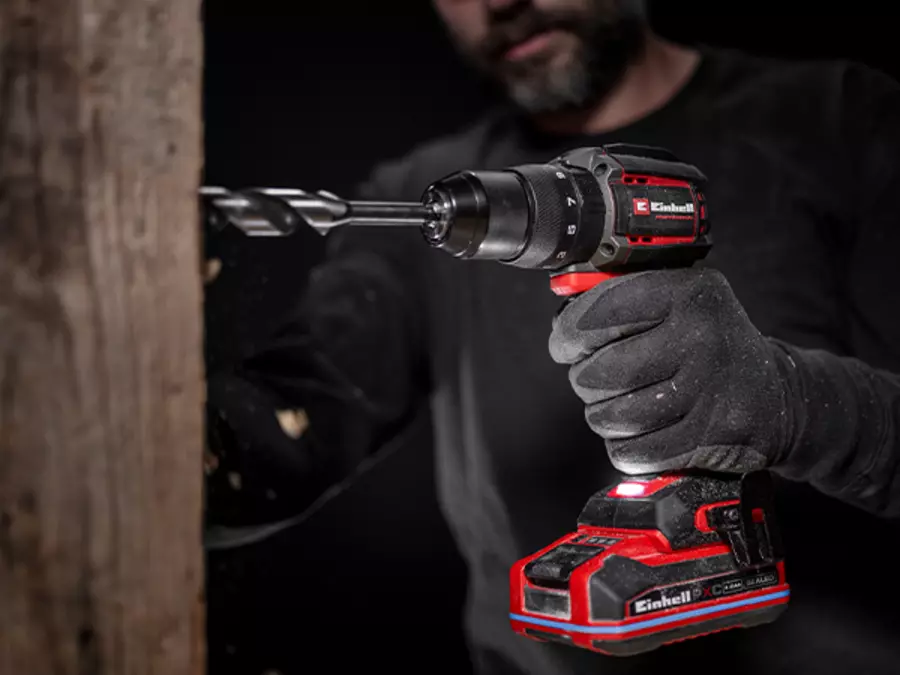

The Einhell TP-CDD 18/70 1-C Li-i +70 (3Ah) cordless impact drill/driver in use, drilling into a piece of wood, held by a person wearing gloves.

Hard torque

With 70 Nm of torque, the cordless impact drill can powerfully master demanding screwing, drilling and impact drilling work.

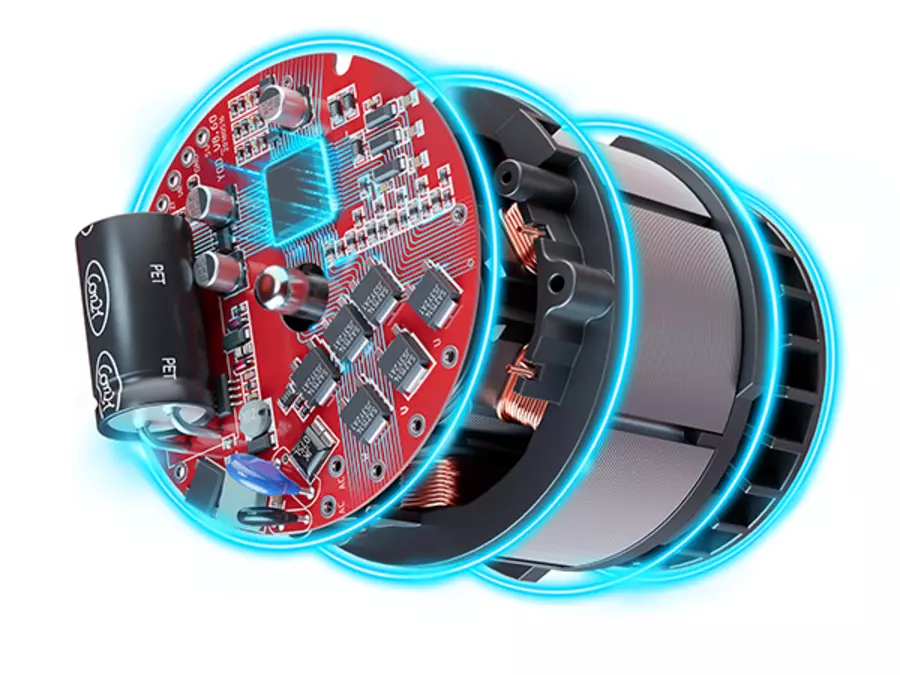

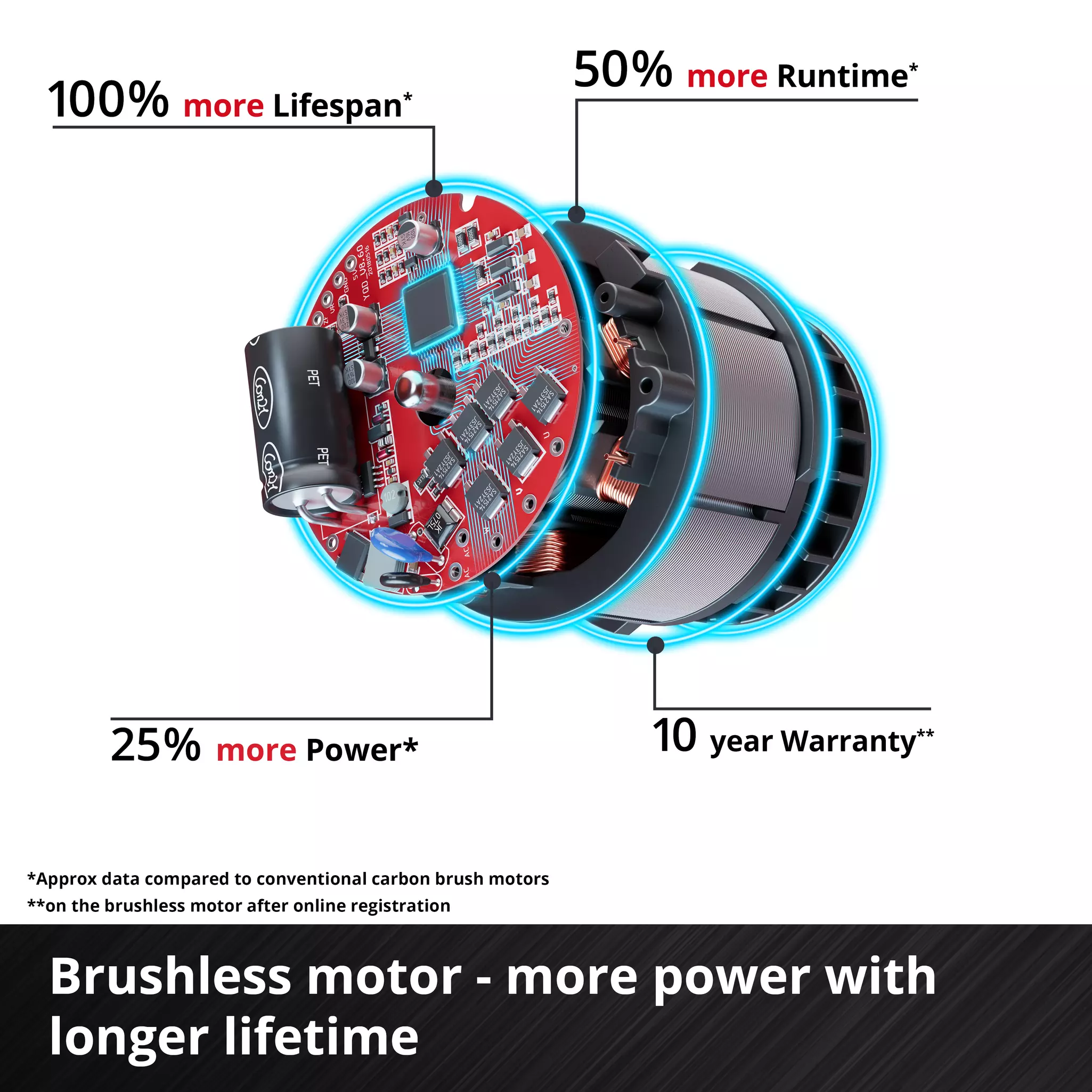

Graphical representation of the brushless motor in the Einhell TP-CDD 18/70 1-C Li-i +70 (3Ah) cordless hammer drill/driver.

Einhell Brushless motor

The brushless motor ensures better performance and a longer running time. Register online for a 10-year service guarantee.

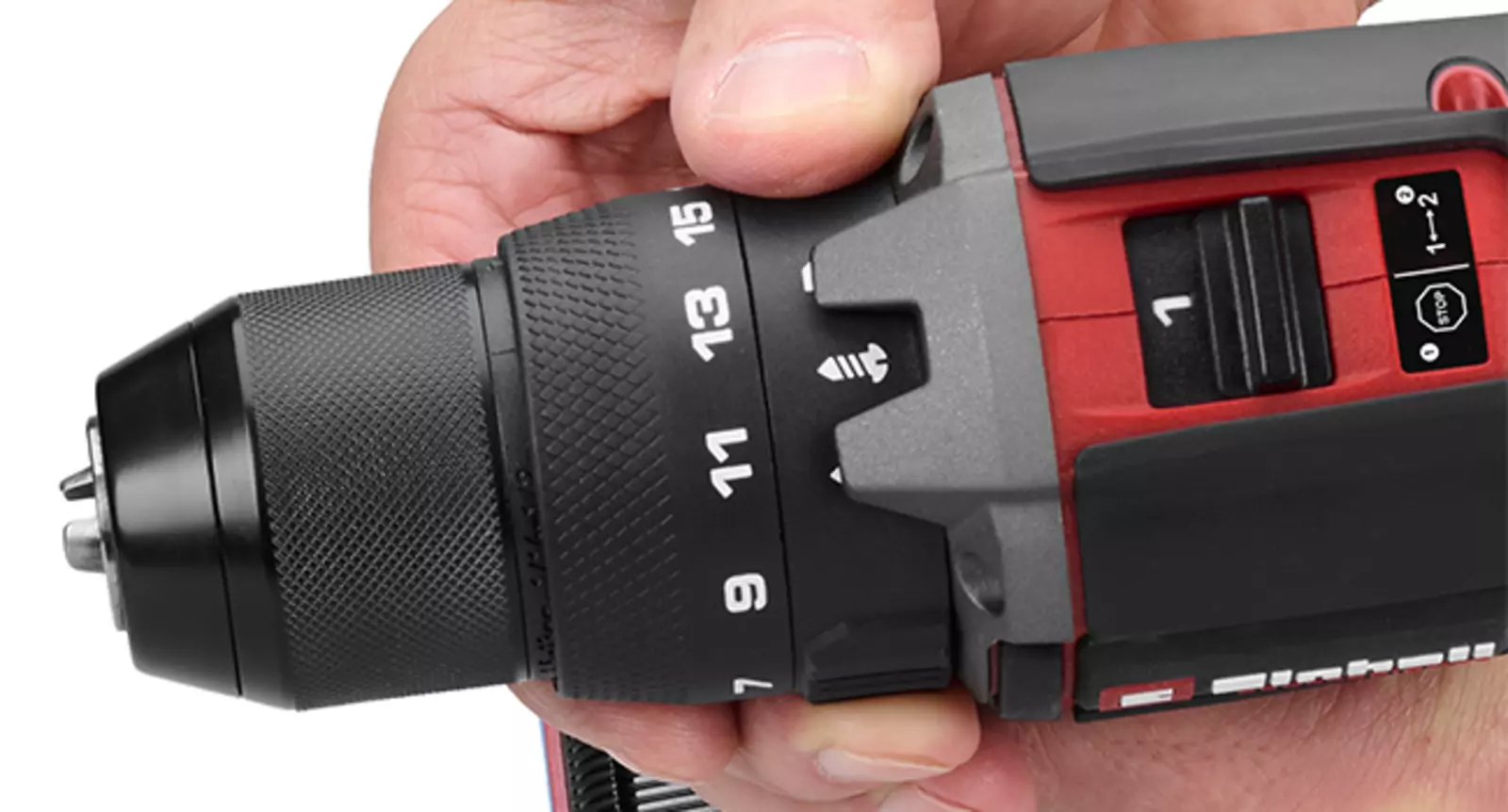

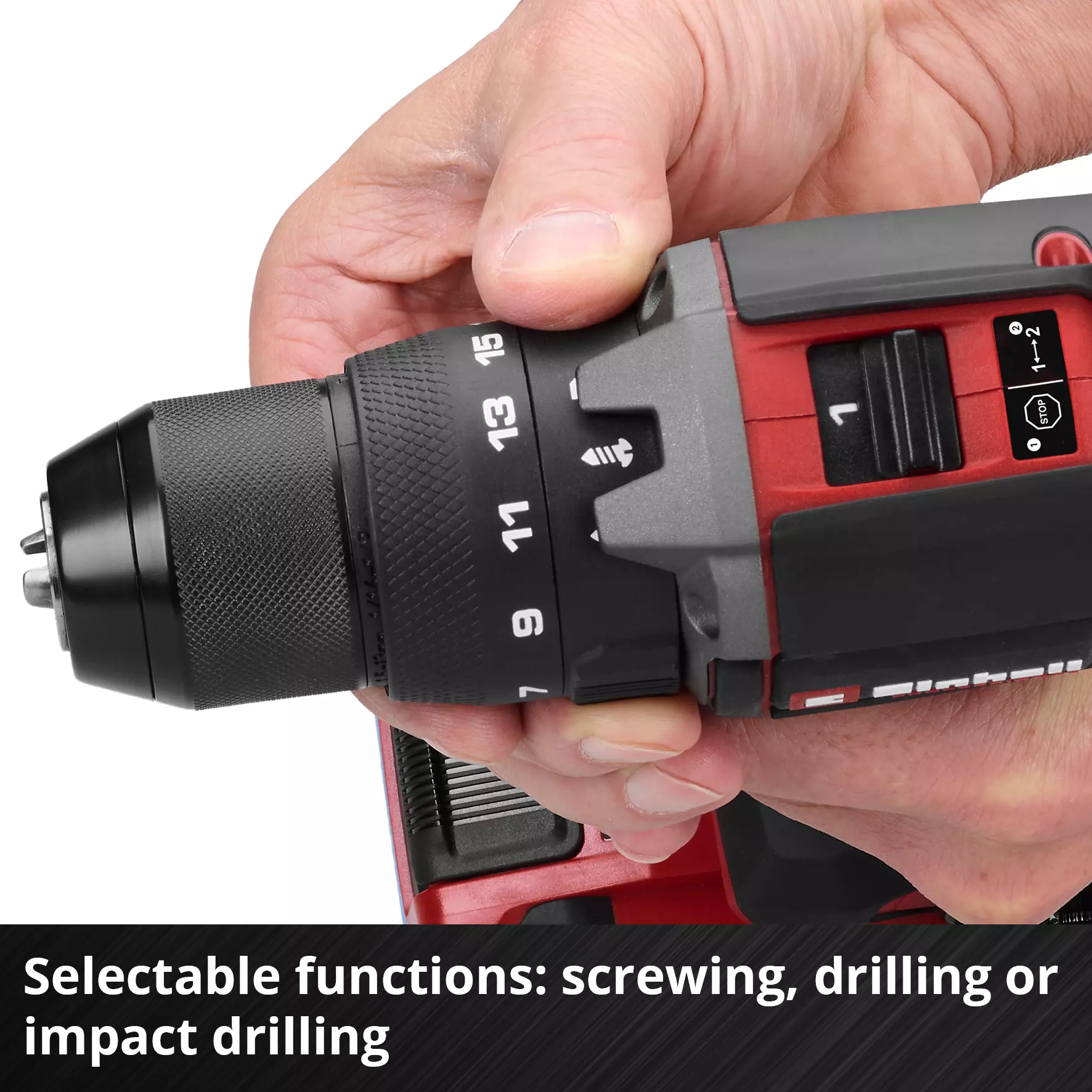

The Einhell TP-CDD 18/70 1-C Li-i +70 (3Ah) cordless impact drill/driver with visible adjustment of the 3 functions: drilling, screwdriving and hammer drilling.

Screwdriving, drilling & impact drilling

The Einhell cordless impact drill TP-CDD 18/701-C Li-i +70 (3Ah) offers three functions: Screwing with 21 torque levels, precise drilling and powerful impact drilling. With up to 70 Nm of torque, it masters wood, metal and masonry effortlessly.

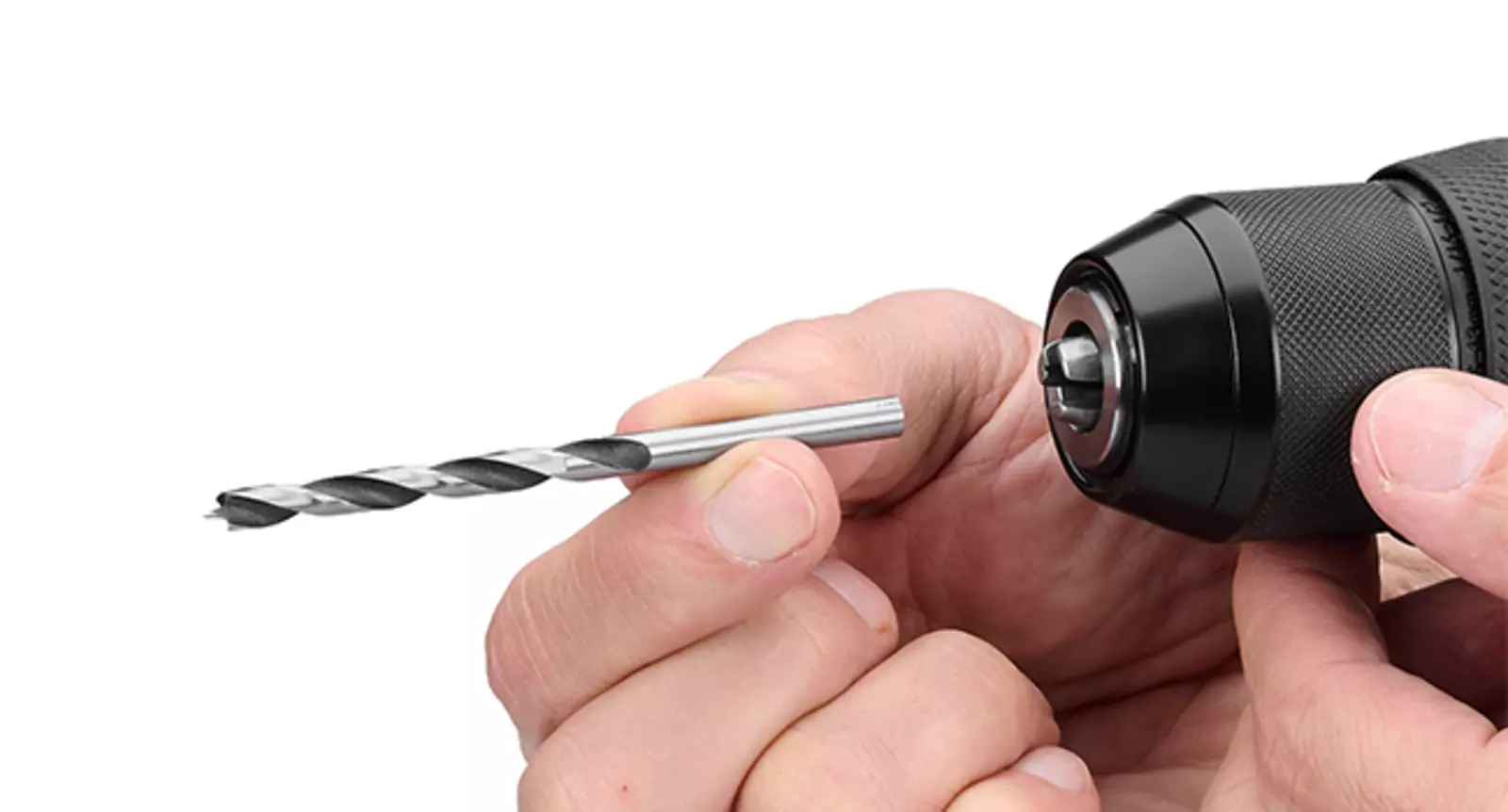

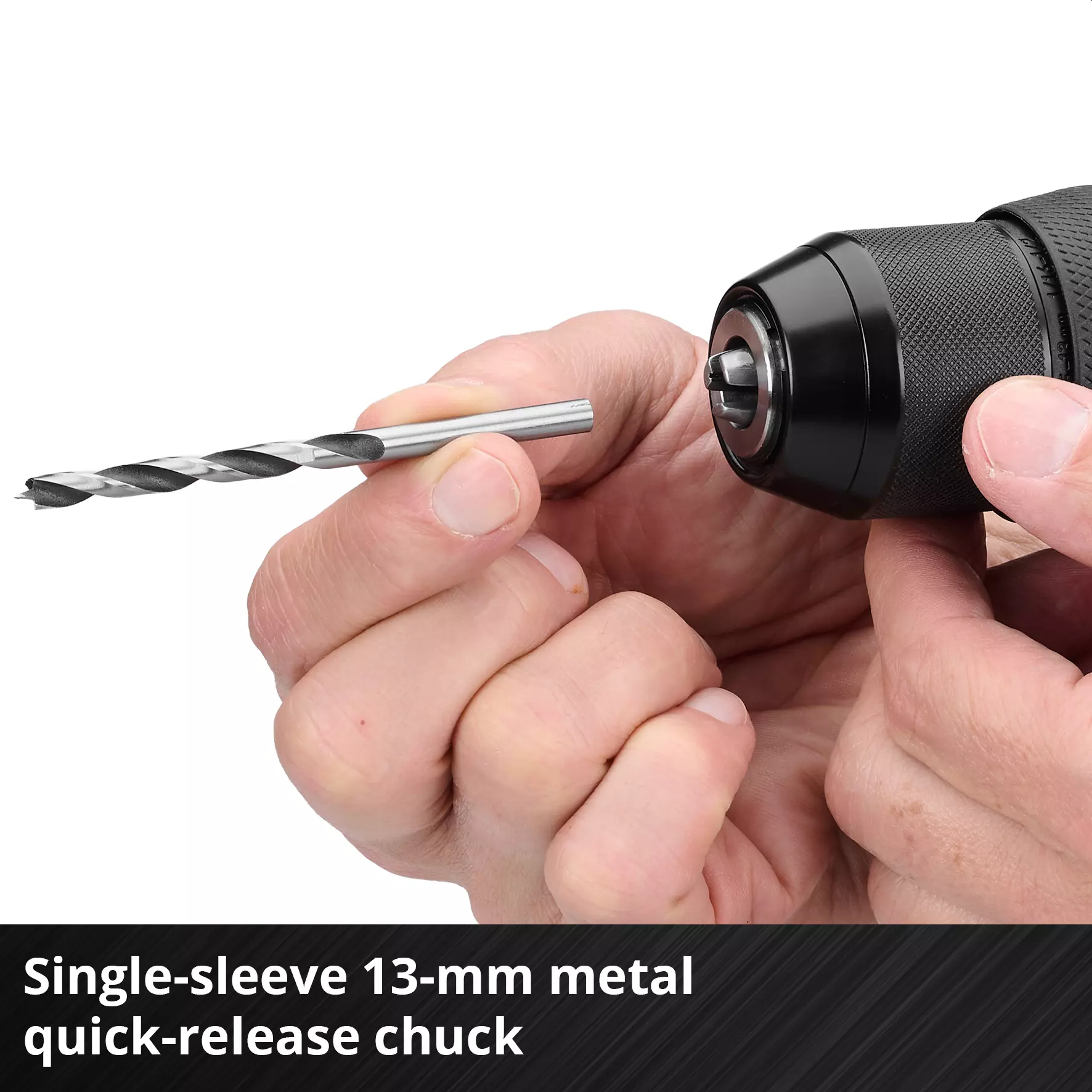

Close-up of the quick-release chuck on the Einhell TP-CDD 18/70 1-C Li-i +70 (3Ah) cordless impact drill/driver while clamping a drill bit.

Metal quick-release chuck

The high-quality quick-release chuck of the Einhell cordless impact drill has a span of 2 to 13 mm. It allows a secure hold of bits and drills and ensures reliable power transmission in common applications.

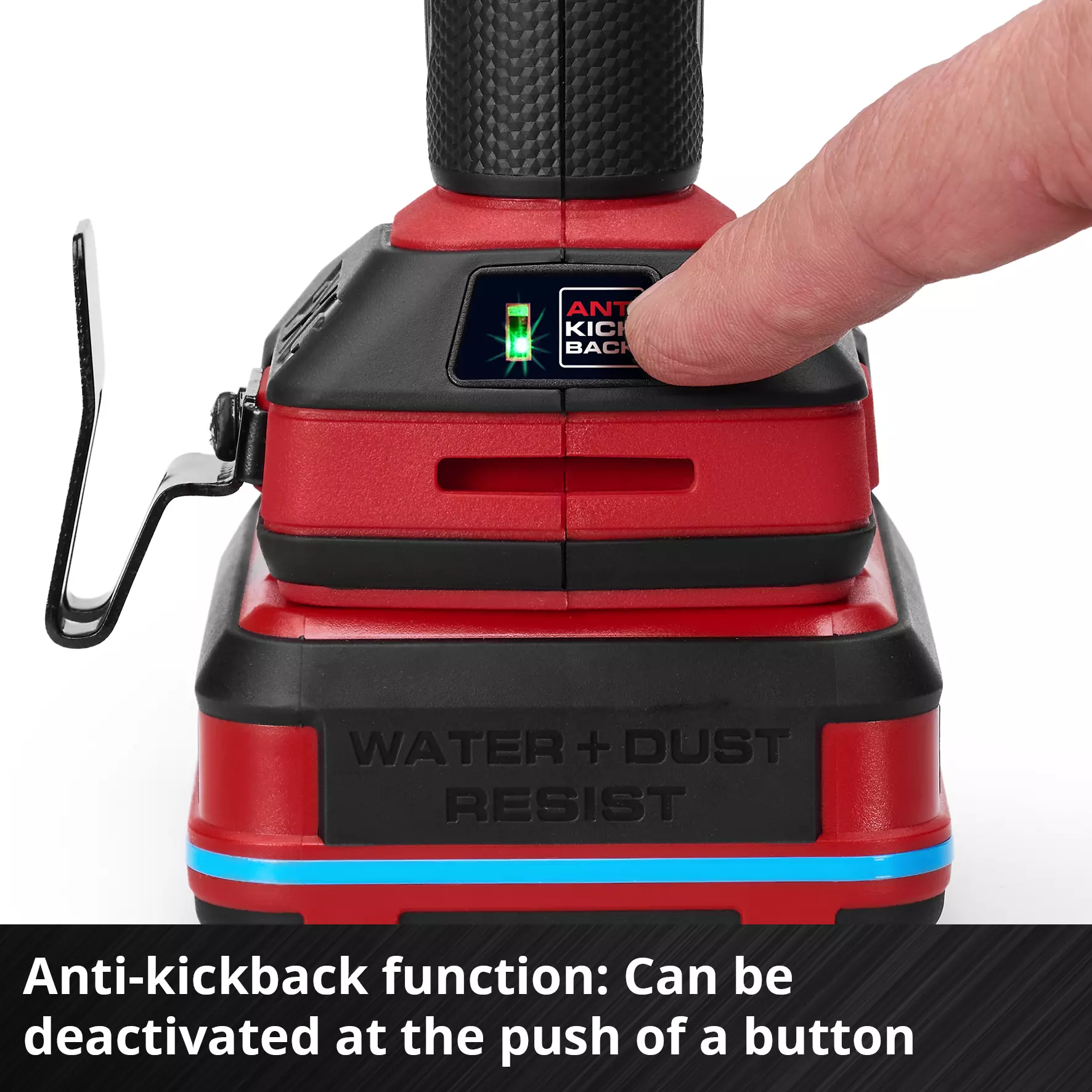

Anti-kickback functionMaximum control and safety during drilling

The Einhell Professional cordless impact drill TP-CDD 18/701-C Li-i +70 (3Ah) offers full control with 21 torque settings as well as a drilling and an impact drilling mode. The anti-kickback function reliably protects against injuries in the event of possible blockages.
